Published in the Proceedings of Transducers95/Eurosensors
A WIDE RANGE, CONFORMABLE, CAPACITIVE
DISPLACEMENT TRANSDUCER
A. Cimmino, A.G. Klein, G.I. Opat
School of Physics, University of Melbourne, Parkville, Vic., 3052, Australia
Phone: +61-3-344 5085, Fax: +61-3-347 4783
E-mail: cimmino@physics.unimelb.edu.au
We have developed a displacement transducer concept, which successfully addresses the requirements of biomechanics, physiology and general engineering metrology:
- High sensitivity (e.g. plethysmography, heart beat monitor, microstrain analysis).
- Large range of elongation (e.g. monitoring of respiratory activity and body movements, large deformations of structures).
- Non invasive (e.g. nocturnal penile tumescence monitors).
The design has been validated in many biomedical, agricultural and engineering applications (Ref. 1-4). The European Space Agency has selected and successfully integrated our transducers in the ANBRE suit designed to capture human movements in space (Ref. 4. Pictures 1-2).

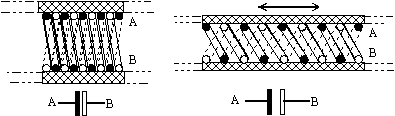

In its basic form the transducer consists of a bifilar
helix of insulated conductive wires embedded in a tube of elastomeric
material (Fig 1). This combination results in an extraordinarily
large range of elongation. The range can be more than double its
initial length. The flexibility permitted by the design allows
the transducer to conform to the contour of objects to which it
is attached (e.g. chest, joint, knee, heart) whilst monitoring
their dimensional changes (Fig. 2).
Fig. 1
Fig. 2
The transducer is basically a spring: elongation and compliance are determined by the elastic properties of the covering elastomers and the double helix core dimensions. As the transducer is stretched, the two wires of the double helix core separate in a uniform, reversible fashion, controlled by the silicone covering.
The transducer can be modeled as a multilayer capacitor or, by unwinding the double helix, as a parallel wire capacitor.
The capacitance per unit length c (x) for
two parallel conductors of circular cross section of radius r
and distance D = 2r+x between centers is:
In (1) C (x) is the total capacitance, L is the uncoiled
length of the electrodes, A=2rL is the effective area, and C
, which includes end effects, is the asymptotic value of
C(x). If n (>>1) is the total number of turns in the core,
the elongation is given by l = nx and the sensor capacitance
can also be written as:
Equation (1) and (2) encapsulate the essential features of the transducer:
(1) Very high sensitivity and resolution, typical of parallel plate capacitor displacement transducers.
(2) Very large range of elongation, owing to the multiplying effect resulting from the helical configuration, up to a limit set by the tensile strength of the elastomers.
Another feature is the large capacitance achievable in a small size: a 100 mm long transducer with a core coil of 1 mm diameter and 0.1 mm gauge insulated wire, has an initial capacitance of ~ 300 pF.
If the transducer capacitance, compensated for
end effects, is the timing component of a simple hysteretic RC
oscillator, the output frequency F is directly proportional to
the elongation l:
In (3) k is an oscillator circuit constant, R is the timing resistance and d0 is the residual core elongation in the relaxed state.

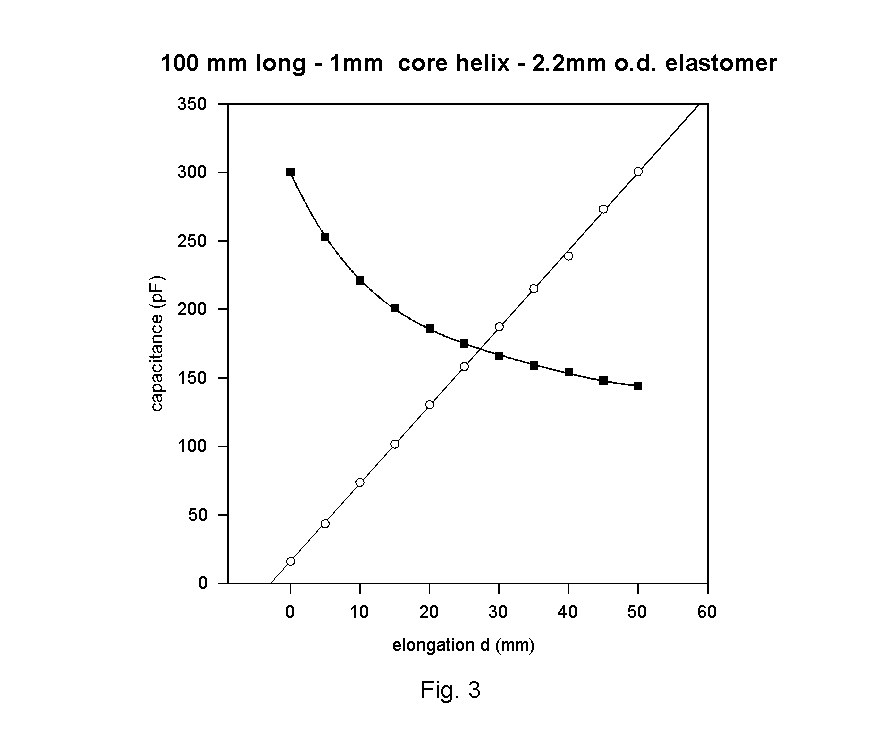

Fig 3 shows the extremely good fit (to 0.1%) between
the elongation data for a typical transducer and the simple model
represented by equations (3).
Ref: 1) United States Patent 5,090,248
2) J.R. Brimacombe et al., Non-invasive monitoring of tidal volume with an extensometer:laboratory and
clinical studies. Anaesthesia, 1991, 46, p756-761
3) J.M. Hinson et al.,Thermoregulatory and anesthetic-induced alterations in the difference among
femoral,radial, and oscillometric blood pressures. Anestesiology, 81, 1411-1421, 1994
4) F. Bagiana et al., EUROMIR 95 ANBRE project, ESA.ESAT3, 1994
